[asterisk-dev] The Trouble with CDR's...!

[Brian Degenhardt]

Steve Murphy wrote:
> To He/She Who Cares about CDR's in Asterisk
>
> I need some community input and proposals.

Some of the changes below sacrifice accurate call counts for tracking
who participated in the call.  Also, there's no method of linking legs
together, so determining "what happened" from CDRs will be difficult.

> ======
> CASE 4: (blind transfer) A calls B;  B transfers call to C (via e.g.,
> #151) C answers; A and C converse; the call is hung up.
>
>
> in 1.4:
>
> "","","151","extension","Zap/52-1","Zap/51-1","Dial","Zap/51|30|
> tw","2006-12-18 09:44:59","2006-12-18 09:45:01","2006-12-18
> 09:45:39","40","38","ANSWERED","DOCUMENTATION","","1166460296.5",""
>
>
> in my 8221 branch:
>
> "","150","150","extension","Zap/52-1","Zap/50-1","Dial","Zap/50|30|
> tw","2006-12-18 08:44:01","2006-12-18 08:44:08","2006-12-18
> 08:44:12","11","4","ANSWERED","DOCUMENTATION","","1166456641.5",""
>
> "151","151","151","extension","Zap/51-1","Zap/52-1","","","2006-12-18
> 08:44:12","2006-12-18 08:44:17","2006-12-18
> 08:44:31","19","14","ANSWERED","DOCUMENTATION","","1166456652.7",""

This looks like "A" participated in two calls, but if you asked him,
he'd say he was only on one.  If you're billing on a per-call basis,
this will be inaccurate.  Also, without a method of linking these two
CDRs together, it's impossible to know that they're related.

There's two things that I think are missing from the current CDR
implementation:

* call counts should be accurate.  If I pick up the phone, and dial a
number, there should only be one CDR entry for my call.  If there isn't
a single entry, I should be able to easily determine that related lines
are all part of one call.

* events throughout the call should be logged.  If I talk to three
different people, that should be logged in some matter.  Ideally, things
like blind transfers, parking events, and directed pickups should be
logged.  When the call is hung up, the source of the hangup should be
logged.

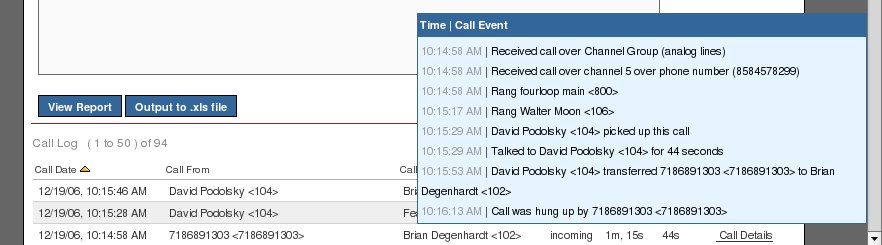

We've hacked together a lot of this functionality in Switchvox.  Here's
a screenshot to illustrate:
http://www.switchvox.com/misc/cdr.jpg

Most of this was done by calling AppendCDRUserField whenever something
interesting happens.  This only works if there's only a single CDR
record per call, or if it's easy to link together CDR records from the
same call.

Ideally, any future changes to the CDR behavior would allow us to
continue to provide the above information.  In a perfect world, Asterisk
would log this info for me so that I don't have to do fancy things in
the dialplan to record what's going on.  I've got a lot of ideas on how
this would be implemented if anyone is interested.

Sorry if this expands the scope of your bugfix, but I just wanted to
point out our perspective.  IMHO the only correct change that can be
done to CDRs is to change them much more fundamentally than how they
work now.

cheers
Brian Degenhardt
bmd at switchvox.com
